Rapid-intervention airfield crash rescue truck of the RAF and Royal Navy, built by HCB-Angus on uprated 1-Ton-specification Land Rover 109 chassis to reach a crashed aircraft and begin rescue work ahead of the major foam tenders.
BASE VEHICLESeries III 109″CONVERTERHCB-AngusIN SERVICE1970–76OPERATED INUnited KingdomPRODUCTION~89 vehiclesLAYOUT4 wheels
The record
TACR1 - Truck, Airfield Crash Rescue, Mark 1 - was the third generation of Land Rover-based crash rescue trucks in RAF service, entering service in 1972 to supersede the earlier ACRT dry-powder and TACT foam trucks. Its job was to be first on scene: a three-man crew raced ahead of the heavy foam tenders to begin rescuing aircrew from a crashed aircraft, and between incidents the trucks escorted taxiing aircraft. The substantial front brush guard was fitted so a responding TACR1 could crash straight through airfield emergency gates without stopping.
The conversions were built by fire-appliance coachbuilder HCB-Angus of Southampton on uprated 109-inch chassis: an initial batch of 22 Series IIA vehicles on the heavy-duty 231-prefix chassis sequence with ENV axles, delivered in Mist White undercoat to the RAF at Aston Down in 1970-71, followed by Series III batches on 911-prefix chassis. Although Land Rover catalogued these as 3/4-ton vehicles, the makers' and military specification plates identify the TACR1 as a 1-ton truck. All used the 2.25-litre petrol engine. The truck carried pre-mixed AFFF (aqueous film-forming foam), an EPCO hydraulic rescue kit and a pneumatic 'ripper gun'; with only a standard cab, the third crew member sat in an exposed rear position connected to the cab by a voice tube.
TACR1s served with the RAF Fire and Rescue Service and the Royal Navy's airfields from the early 1970s until the early 1990s, including detached Harrier-site operations, and the first example delivered (28 AG 00) covered some 230 incidents in 58 days during the 1977 national firemen's strike. Around 89 were built and few survive; the Range Rover-based TACR2 began replacing them from 1977.
MANUFACTUREDBuilt from 1970-71 (Series IIA batch) into the mid-1970s; in service 1972 to the early 1990s
ENGINE2.25 L petrol inline-four
PRODUCTION RUN~89 vehicles
COUNTRY OF ORIGINUnited Kingdom
OPERATED INUnited Kingdom
STATUSretired; a handful preserved
RECORD KINDNamed model
MODEL LINESeries III
WHEELS4
CATEGORYSpecial · Fire
Catalogue fields describe the vehicle's structure and body as this registry records it. They are not certified factory measurements, and no performance figures are published here.
Variants & colours
Factory colours
Fire Engine Red
Codes on hover. Hex values are representative approximations of period paint unless a source states a measured value.
Renders & references

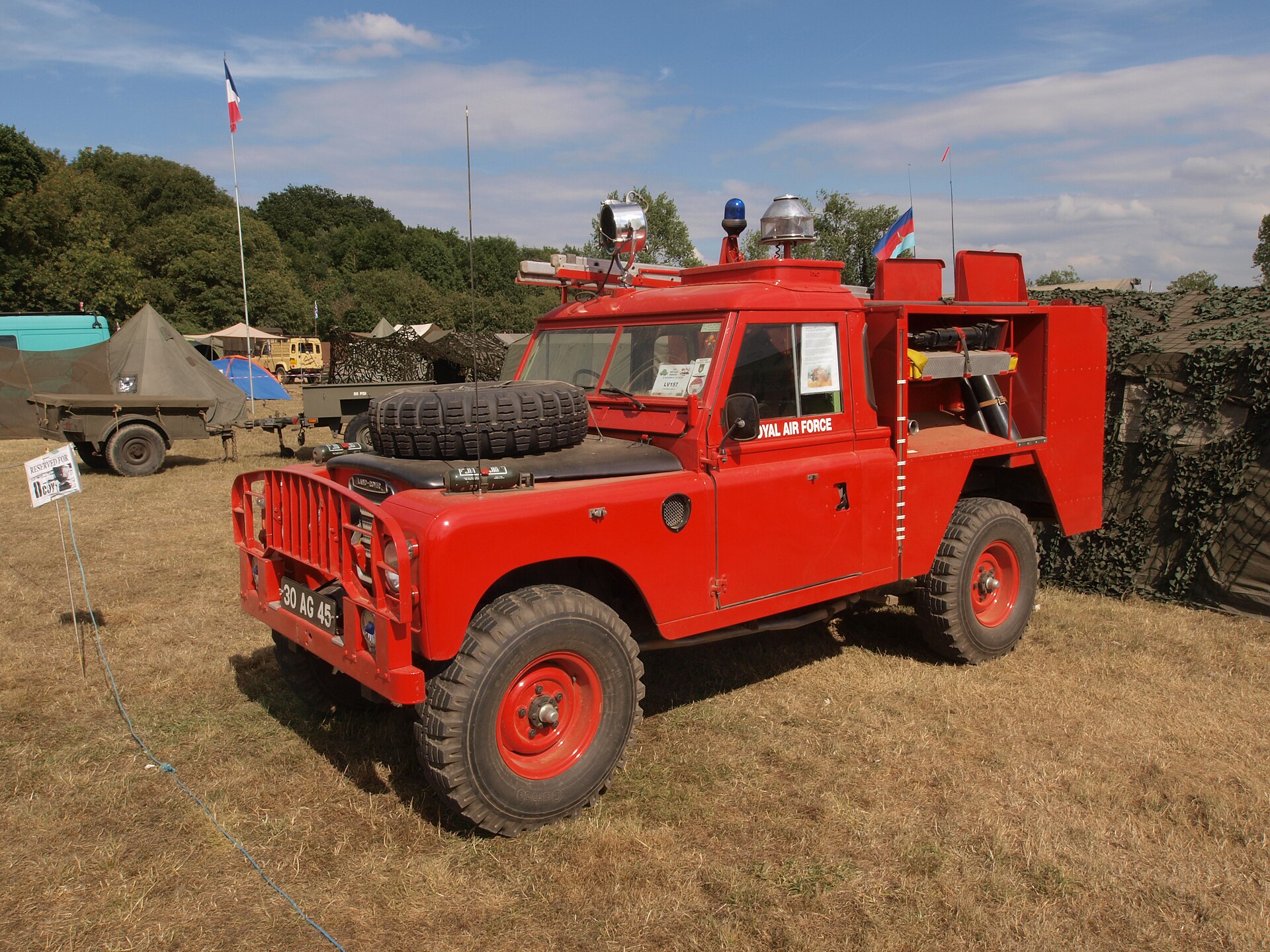

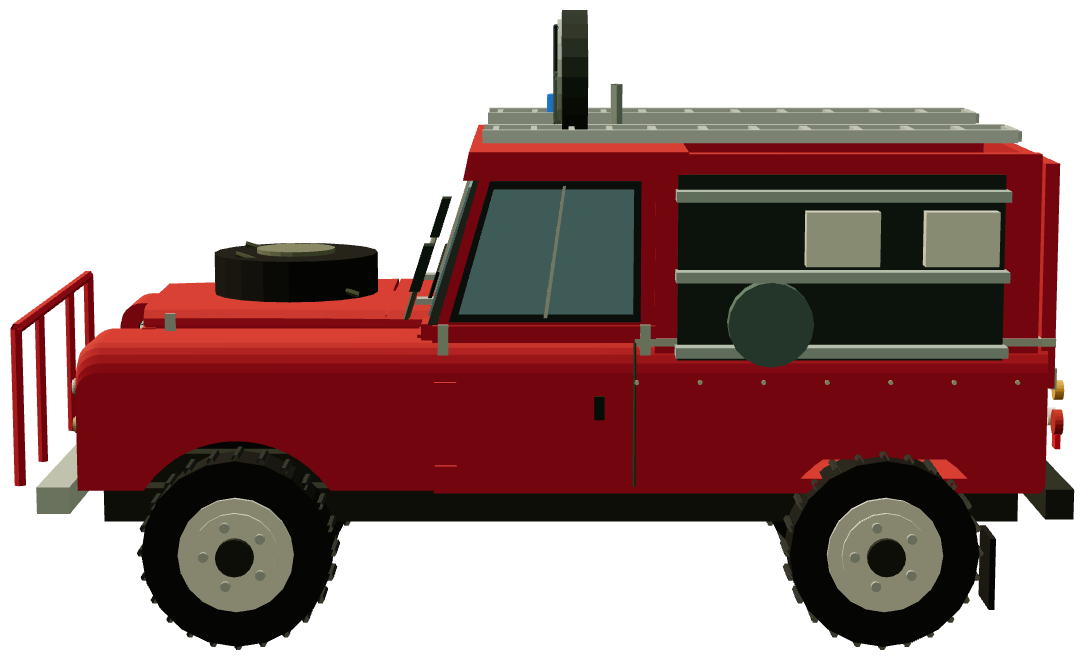

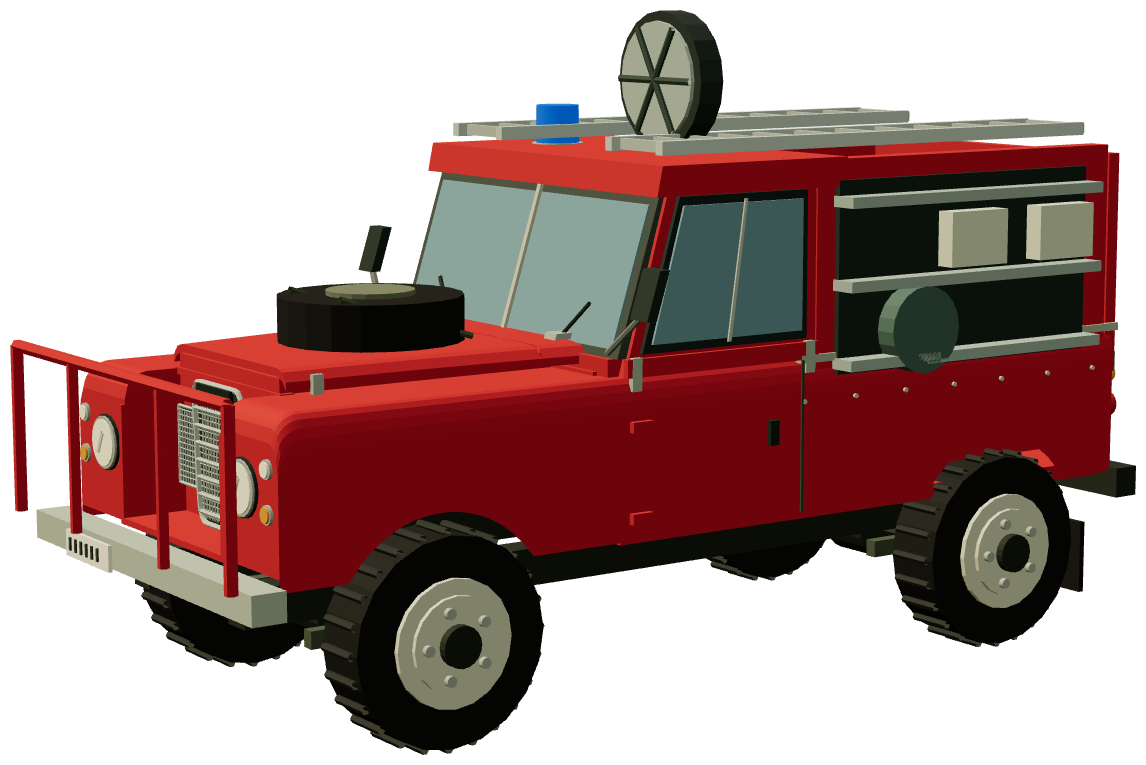

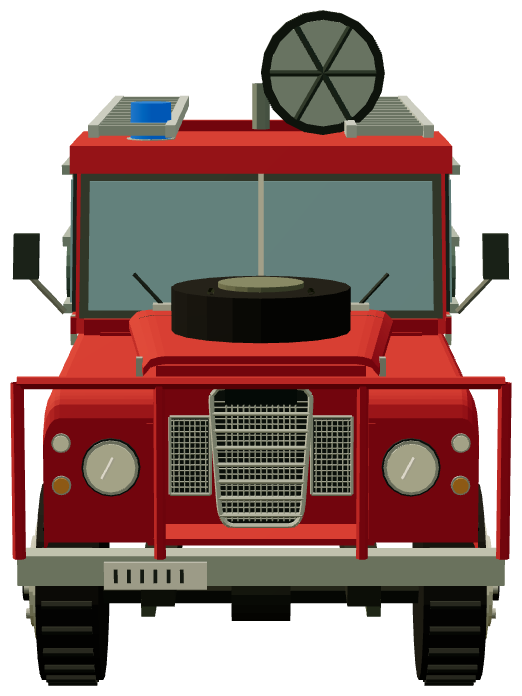

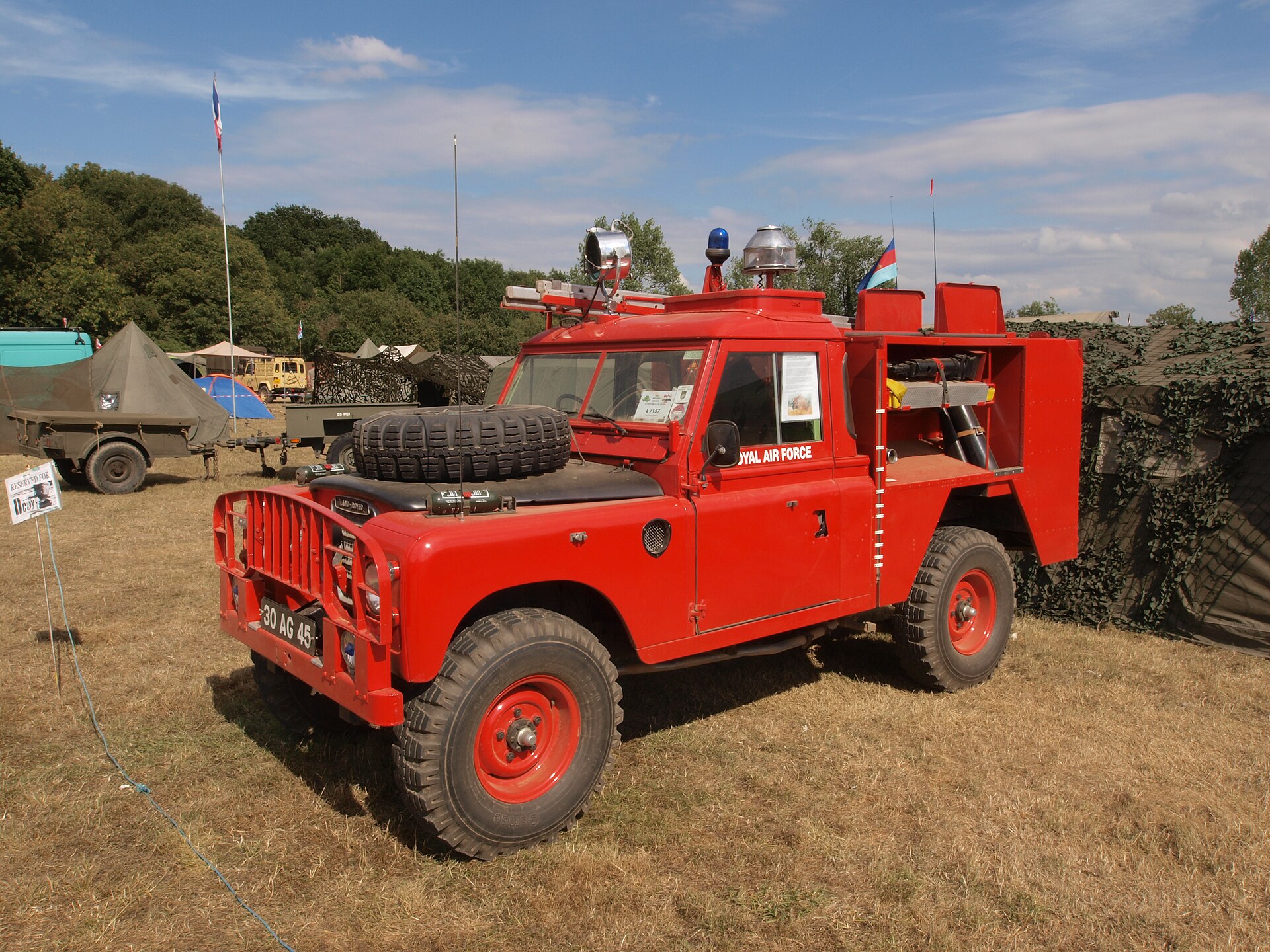

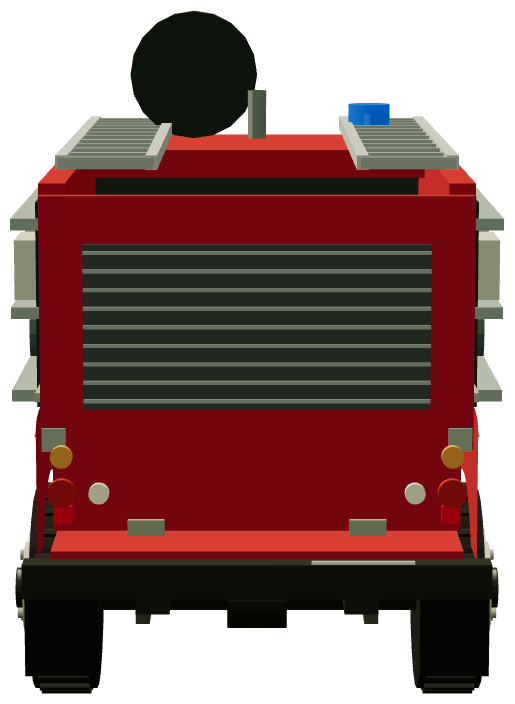

Front three-quarterRegistry renderThree-quarterRegistry renderSideRegistry renderRearRegistry renderFrontRegistry renderPreserved 1974 RAF TACR1 30 AG 45, showing the gate-crashing brush guard and roof-mounted foam monitorAlfvanBeem · CC0 ↗Rear view of preserved TACR1 30 AG 45 with the exposed third-crew position and equipment lockersAlfvanBeem · CC0 ↗
