Dale Bull-Angledozer.

The Dale Bull-Angledozer: a 66-inch hydraulic dozer blade for the Land Rover, raised by a single-acting ram from a hand pump in the cab and angled 25° either way, made by J. B. Howie of Salford Priors near Evesham and approved by Rover in 1958 for builders, contractors, farmers and councils — with a 78-inch snow-plough blade interchangeable on the same brackets.

Drive it in the gameSources & evidence

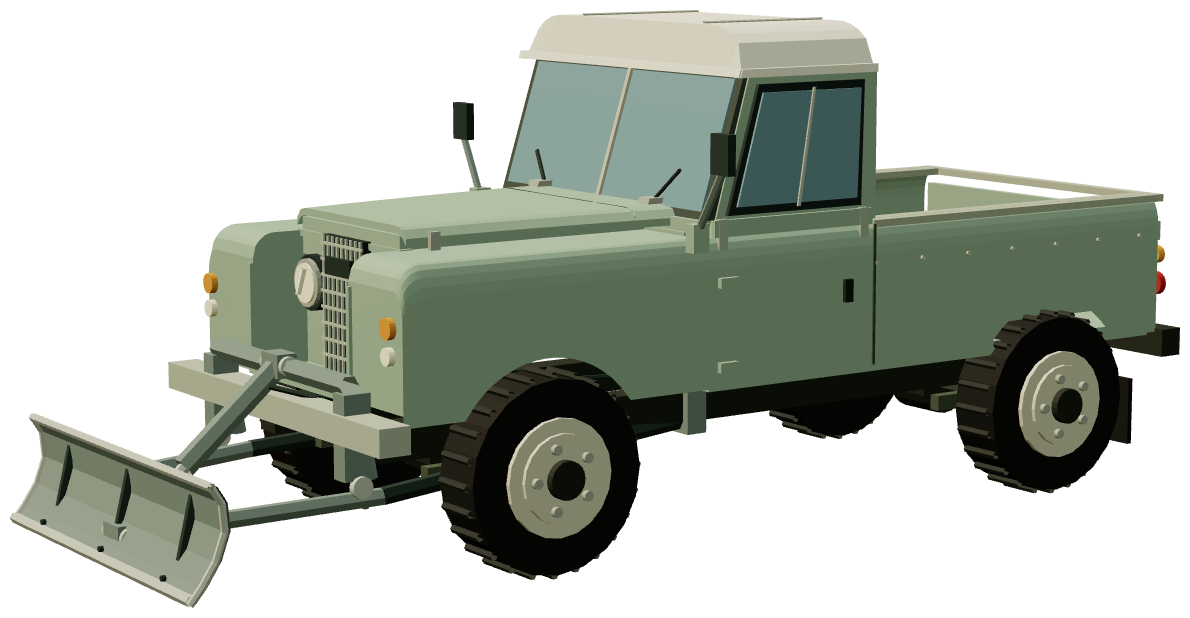

Dale Bull-Angledozer — front three-quarter render
BASE VEHICLESeries II 109″CONVERTERJ. B. Howie (Dale)IN SERVICE1958OPERATED INUnited KingdomPRODUCTIONUnknownLAYOUT4 wheels · 109″

The record

J. B. Howie of Salford Priors, Evesham, Worcestershire — the same Vale of Evesham that produced the Bates fire appliances — sold a pair of front-mounted implements for the Land Rover under the Dale name, approved by the Rover Company: a bull-angledozer and a snow-plough, interchangeable on fixing brackets that could stay on the vehicle, either one fitted in under five minutes. The 1958 leaflet, received by the Automobile Association's library that December, pitched them at builders, contractors, farmers and councils.

The angledozer blade is 66 inches long and 17 inches deep and weighs 282 lb; the snow-plough blade is 78 inches by 22 inches at 356 lb. Both are raised by a single-acting hydraulic ram worked from a hand pump in the cab, within reach of the driver, and both can be angled right or left — 25 degrees for the dozer, 30 for the plough — against an angle stop. The blade profile was designed to give what Howie called a rolling action to spoil or snow. No drilling or alteration to the Land Rover was needed; the mounting frame runs back along the chassis to brackets behind the front wheels, as the brochure drawing shows.

This record follows the bulldozer form, on a 109-inch Series II with the 2.25-litre petrol four. Sales figures are not recorded.

Specification

MANUFACTURERLand Rover
MODIFIER / COACHBUILDERJ. B. Howie (Dale) ↗
Salford Priors, Evesham (Dale implements)
MANUFACTUREDOffered 1958 as a Rover-approved implement; sales period not recorded
ENGINE2.25 L petrol inline-four (Series II 109 donor)
PRODUCTION RUNUnknown — sales figures not recorded
COUNTRY OF ORIGINUnited Kingdom
OPERATED INUnited Kingdom
DOZER BLADE66 in × 17 in, 282 lb, angled to 25°
SNOWPLOUGH BLADE78 in × 22 in, 356 lb, angled to 30°
LIFTsingle-acting hydraulic ram, hand pump in the cab
RECORD KINDNamed model
MODEL LINESeries II
WHEELS4
NOMINAL WHEELBASE109″
CATEGORYSpecial · Utility & Heavy

Catalogue fields describe the vehicle's structure and body as this registry records it. They are not certified factory measurements, and no performance figures are published here.

Sources

  1. 1The Dale Bull-Angledozer and Snow-Plough — J. B. Howie leaflet, 1958, 2 pages (Builders! Contractors! Farmers! Councils!; implements interchangeable on fixing brackets left on the vehicle, fitted in under 5 minutes; rolling action; angled 25° dozer / 30° snowplough with angle stop; no drilling or alteration; as approved by the Rover Co. Ltd; AA library stamp 5 December 1958) ↗Land Rover brochure archive, Hermen Vlothuizen collection · accessed 2026-09-11SOURCE
  2. 2Dale — Specification & Details (single-acting hydraulic ram operated by hand pump in the cab; angledozer 66 in × 17 in, 282 lb / 1,678 × 432 mm, 128 kg; snow-plough 78 in × 22 in, 356 lb / 2,000 × 559 mm, 161 kg) ↗Land Rover brochure archive, Hermen Vlothuizen collection · accessed 2026-09-11SOURCE
  3. 3Land Rover series (Series II 1958–61 with the 2.25 L petrol four; 109-inch long wheelbase) ↗Wikipedia · accessed 2026-09-11SOURCE
