Six-wheel crew-cab fire appliance built on an extended Land Rover Defender, typified by the one-off 1998 6×6 appliance that protected Land Rover's own Gaydon proving ground for nearly two decades.
BASE VEHICLEDefender 130 Hi-CapCONVERTERGB FireIN SERVICE1998OPERATED INUnited KingdomPRODUCTIONa handful of 6×6 Defender fire appliances worldwideLAYOUT6 wheels
The record
A small number of Defenders were stretched to six-wheel configuration and bodied as compact fire appliances, combining a crew cab with a high equipment body, pump, water tank and roof ladder rack - a formula for airfields, proving grounds and industrial sites that needed a genuine off-road fire engine smaller than a conventional appliance. Only a handful of such 6×6 Defender fire engines are recorded worldwide, and individual vehicles differ in converter, drivetrain and equipment; ex-Ministry of Defence 6×6 TDCi Defender fire appliances have also appeared on the surplus market.
The best-documented example - and the closest match to this record's user-supplied reference photograph of a red 6×6 crew-cab appliance - began life in 1998 as a standard-wheelbase Defender station wagon and was converted to 6×6 by Land Rover's special vehicles operation together with fire-appliance specialist GB Fire. It served as the company fire appliance at the Jaguar Land Rover proving ground at Gaydon, Warwickshire, until around 2015-16, was sold on by Land Rover Classic in 2017, and was then comprehensively refurbished by ACHSV - including a new Godiva pump - to serve as the private works fire appliance of the DCS Group in Banbury.
The identification of this record with any single converter is uncertain: the record is kept as a representative composite of the 6×6 Defender fire appliance type, with the Gaydon/GB Fire vehicle as its anchor example. Carmichael's earlier six-wheel fire conversions, which this formula echoes, were built on the Range Rover (see the TACR2 record) rather than the Defender.
Research status: draft — identification, dates or figures could not all be pinned down; the summary says what is unresolved.
Land Rover Special Vehicles with GB Fire (1998 Gaydon appliance); other 6×6 appliance converters unidentified
MANUFACTUREDAnchor example converted 1998; similar 6×6 appliances built in the 1990s-2000s
ENGINEAs the donor Defender 130 — 300 Tdi on the 1998 Gaydon appliance's generation, Td5 or Puma on later conversions
PRODUCTION RUNa handful of 6×6 Defender fire appliances worldwide
COUNTRY OF ORIGINUnited Kingdom
OPERATED INUnited Kingdom
STATUSrare survivors; the Gaydon appliance restored and in private works service
RECORD KINDNamed model
MODEL LINEDefender
WHEELS6
CATEGORYSpecial · Fire
Catalogue fields describe the vehicle's structure and body as this registry records it. They are not certified factory measurements, and no performance figures are published here.
Variants & colours
Factory colours
Fire Engine Red
Codes on hover. Hex values are representative approximations of period paint unless a source states a measured value.
Renders & references

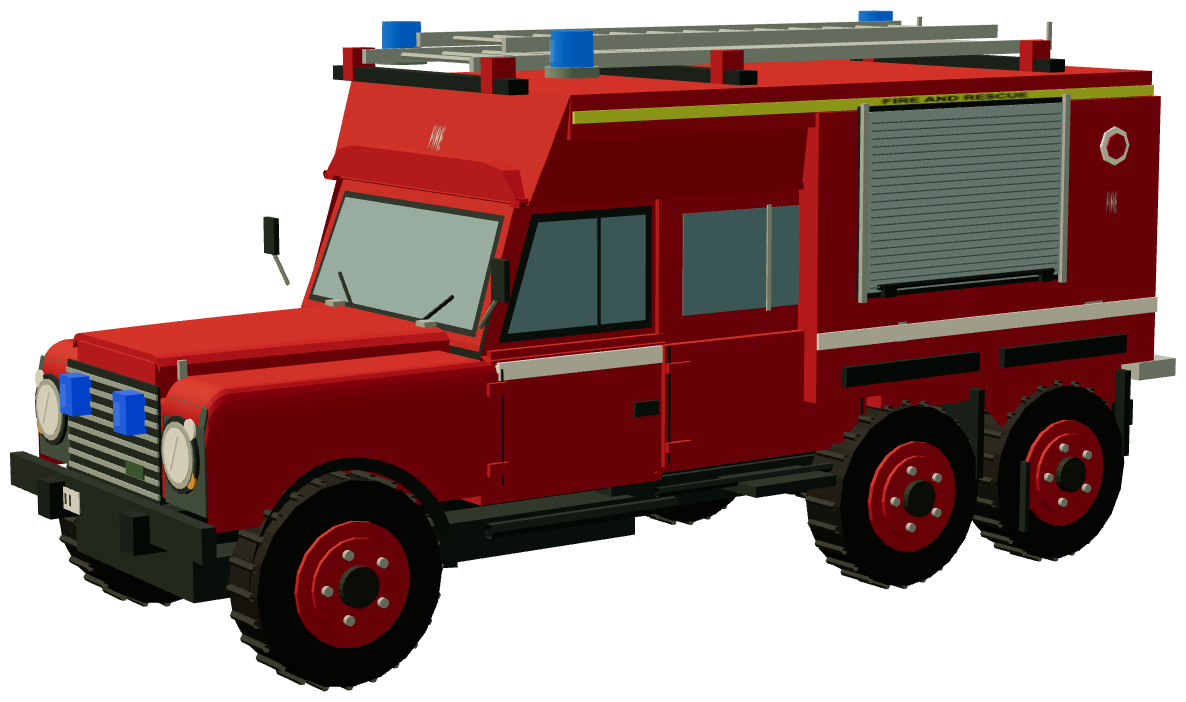

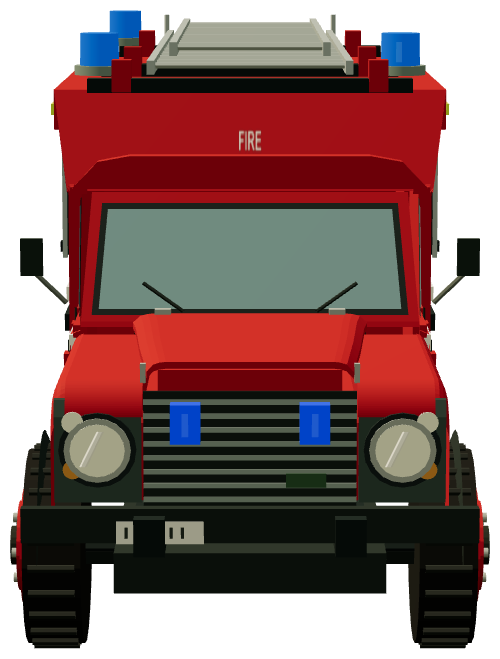

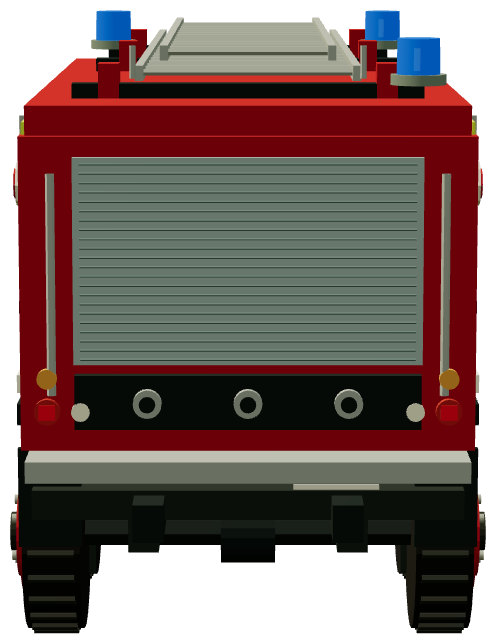

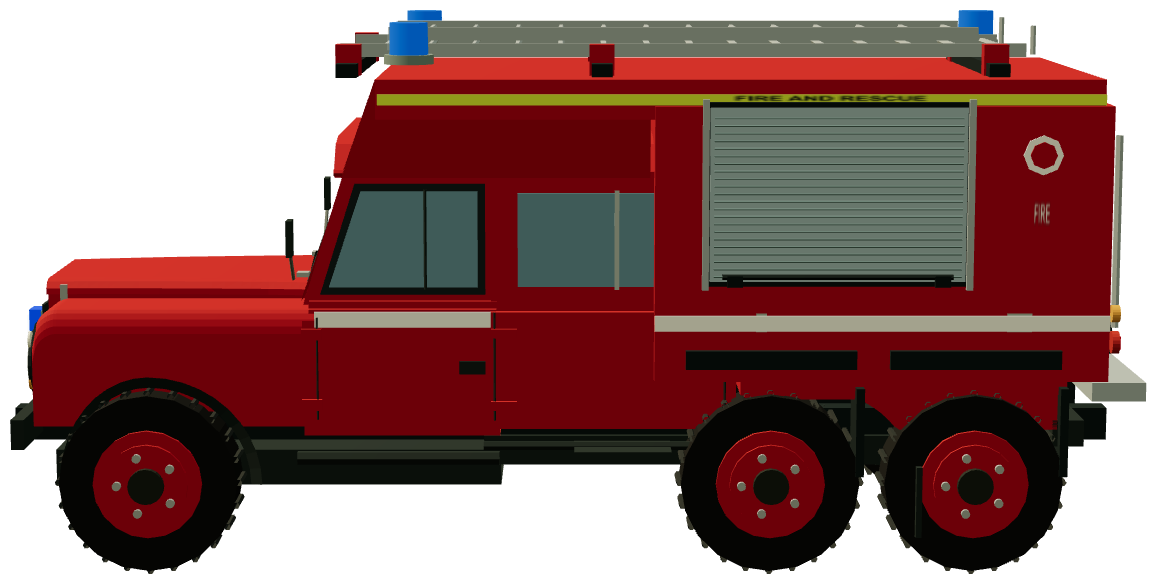

Front three-quarterRegistry renderThree-quarterRegistry renderSideRegistry renderRearRegistry renderFrontRegistry render
