DIFFLOCKEDTHE REGISTRY NAMED MODEL · 1967–78
NAMED MODELSpecial · CommercialSpain

1300 recovery.

A Santana 1300 forward-control chassis-cab bodied as a canvas-tilt recovery and breakdown truck. The 1300 was Santana's own 1.3-tonne forward-control lorry, built at Linares from 1967 to 1978 on Series IIA 109-inch running gear and nicknamed the 'Chato de Linares'; its bare chassis-cab was a favourite of Spanish coachbuilders, who turned it into everything from roadside-assistance recovery trucks to fire appliances.

Drive it in the gameSources & evidence

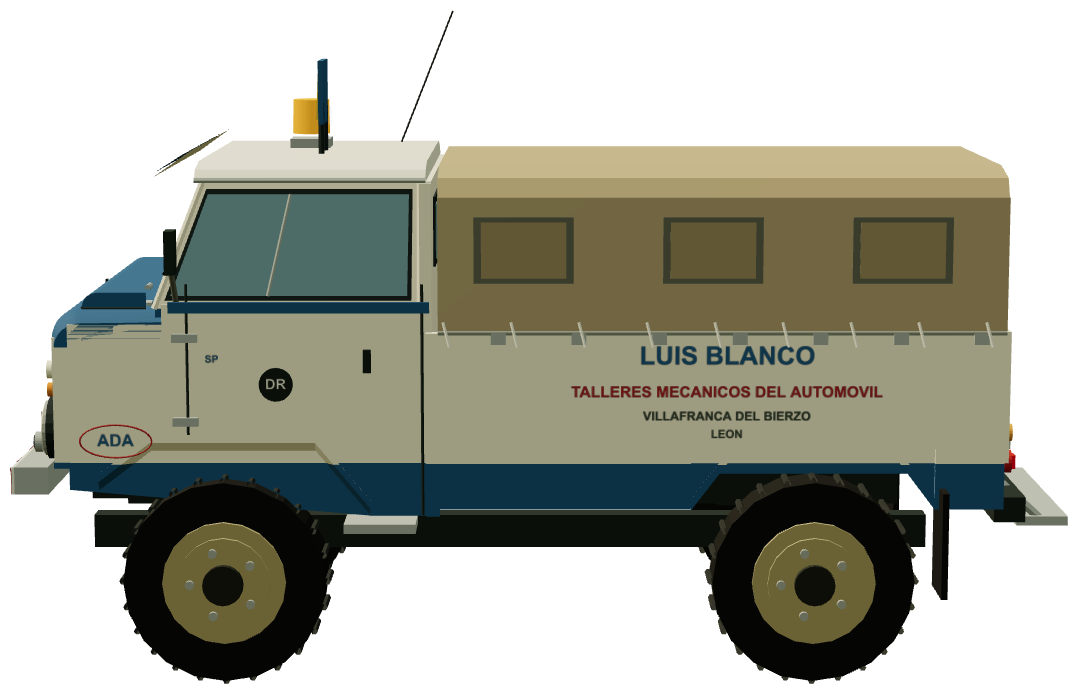

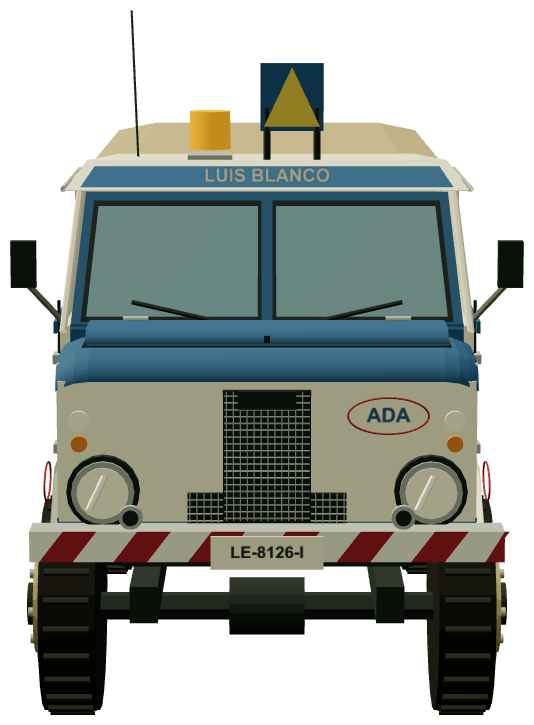

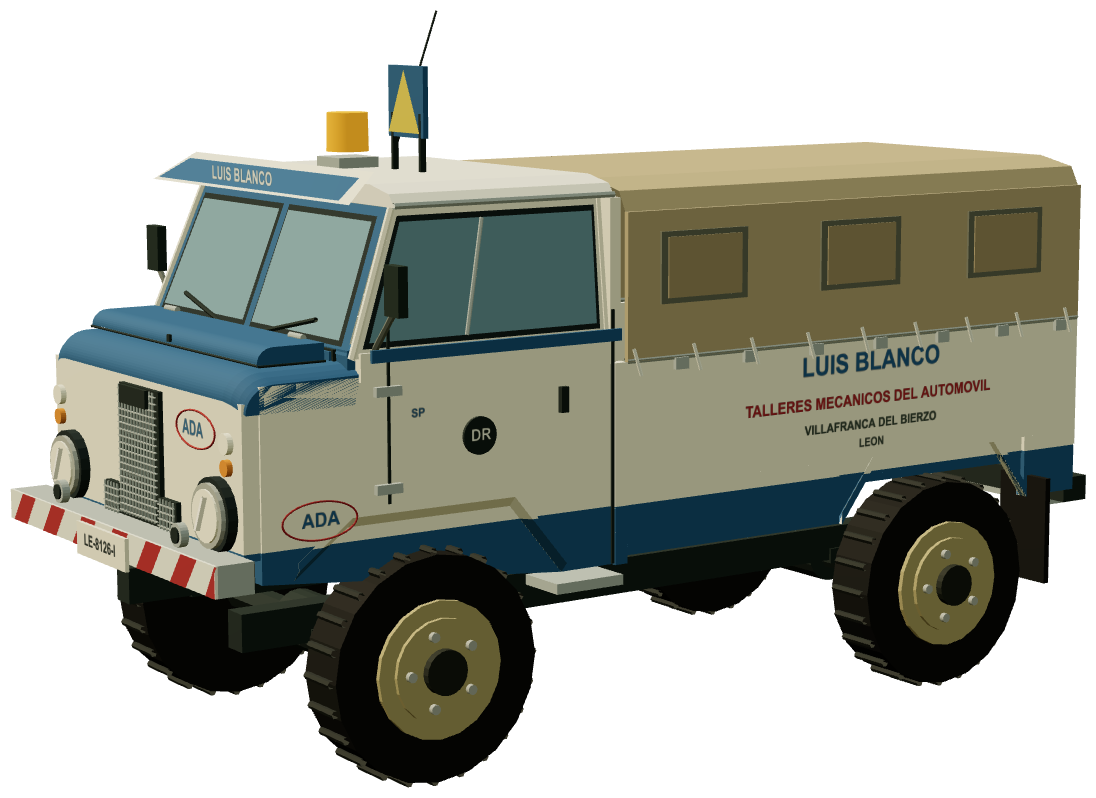

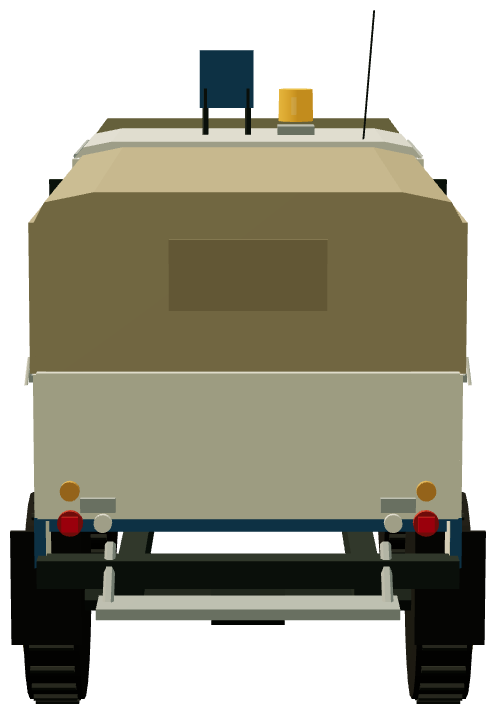

1300 recovery — front three-quarter render
BASE VEHICLESantana 1300BUILT BYSantana Motor (Metalúrgica de Santa Ana)IN SERVICE1967–78OPERATED INSpainPRODUCTION~4,000 Santana 1300s of all body typesLAYOUT4 wheels

The record

Santana Motor began assembling Land Rovers under licence at Linares, in the province of Jaén, in 1958, and within a few years the Spanish cars had drifted away from their Solihull equivalents in detail and then in substance. One of the boldest divergences was the Santana 1300 of 1967: a forward-control 1.3-tonne truck built on the long-wheelbase 109-inch Series IIA chassis with the cab and mechanicals pushed as far forward as possible to free up a long load area behind. It served the same purpose as Britain's Land Rover 101 Forward Control but was developed quite independently, and unlike the 101 it was sold to the general public as well as to government. Spaniards nicknamed it the 'Chato de Linares' — roughly 'the snub-nose from Linares'.

Mechanically the 1300 used the familiar 2,286 cc four, either the 81 CV petrol or the 62 CV diesel; a few examples built to special order for government bodies received Santana's own 3.4-litre six. Kerb weight was 1,760 kg for the petrol and 1,840 kg for the diesel, on a 2,778 mm wheelbase, and about 4,000 were built before the larger Santana 2000 replaced it in 1978. Because the type was sold as a chassis-cab as often as a complete truck, an unusually wide spread of bodies appeared on it: flat platforms, tippers, canvas-tilt cargo bodies, minibuses for the Guardia Civil, fire appliances by FIMESA of Madrid, and light recovery trucks with a jib and towing gear at the rear.

Recovery and roadside-assistance work suited the 1300 well: it was compact enough for narrow Spanish streets, had four-wheel drive for retrieving vehicles off the road, and offered a long rear deck for a winch, jib and tools under a canvas tilt. Spanish enthusiasts still refer to surviving examples such as the ADA roadside-assistance 1300s of the 1960s and 1970s. The specific operator lettering carried by the vehicle recorded here ('Luis Blanco') could not be traced to a documented business in published sources, so it should be read as representative of the many small independent recovery firms that ran these trucks rather than as a verified individual vehicle.

Specification

MANUFACTURERSantana Motor (Metalúrgica de Santa Ana) ↗
Linares (Jaén), Spain
MODIFIER / COACHBUILDERIndependent Spanish coachbuilders (recovery body); the vehicle depicted carries 'Luis Blanco' lettering that could not be verified against published sources (bodybuilder not recorded)
MANUFACTURED1967–1978
ENGINE2,286 cc inline-four — 81 CV petrol or 62 CV diesel (a 3,429 cc Santana six was fitted to some special-order vehicles)
PRODUCTION RUN~4,000 Santana 1300s of all body types
COUNTRY OF ORIGINSpain
OPERATED INSpain
STATUSout of production since 1978; survivors preserved and restored in Spain
PAYLOAD1,300 kg (hence the model name)
LENGTH4,840 mm
WIDTH1,680 mm
HEIGHT2,100 mm (cab) / 2,190 mm (metal roof)
WHEELBASE2,778 mm
KERB WEIGHT1,760 kg petrol / 1,840 kg diesel
RECORD KINDNamed model
MODEL LINESantana 1300
WHEELS4
CATEGORYSpecial · Commercial

Catalogue fields describe the vehicle's structure and body as this registry records it. They are not certified factory measurements, and no performance figures are published here.

Variants & colours

Factory colours

  • Pastel green
  • Beige
  • Yellow
  • Light blue

Codes on hover. Hex values are representative approximations of period paint unless a source states a measured value.

Sources

  1. 1Santana 1300 ↗Wikipedia (Spanish) · accessed 2026-09-10SOURCE
  2. 2Land Rover Santana 1300, el famoso 'Chato de Linares' ↗Terranea · accessed 2026-09-10SOURCE
  3. 3Santana Motor ↗Wikipedia (Spanish) · accessed 2026-09-10SOURCE
  4. 4File:Santana 1300.jpg ↗Wikimedia Commons · accessed 2026-09-10SOURCE
  5. 5https://i.pinimg.com/736x/53/4c/5c/534c5c369726030867c10dc29a002496.jpghttps://i.pinimg.com/736x/53/4c/5c/534c5c369726030867c10dc29a002496.jpg ↗REFERENCE

Registry record updated 2026-09-11T00:38:16.974Z · status: researched
