The record

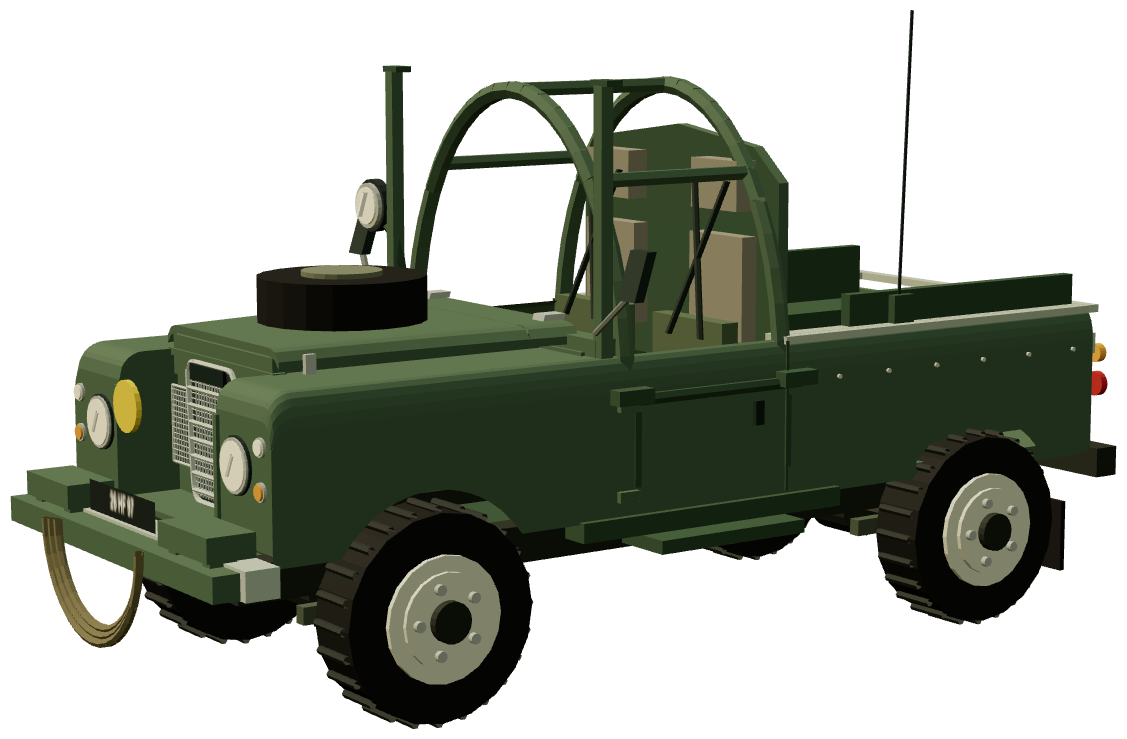

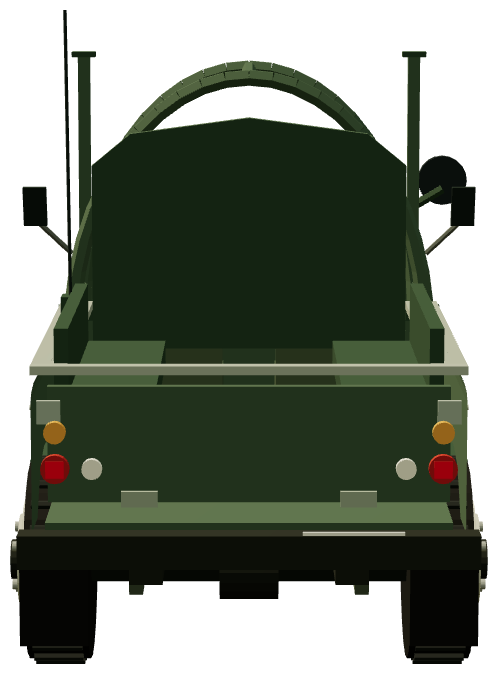

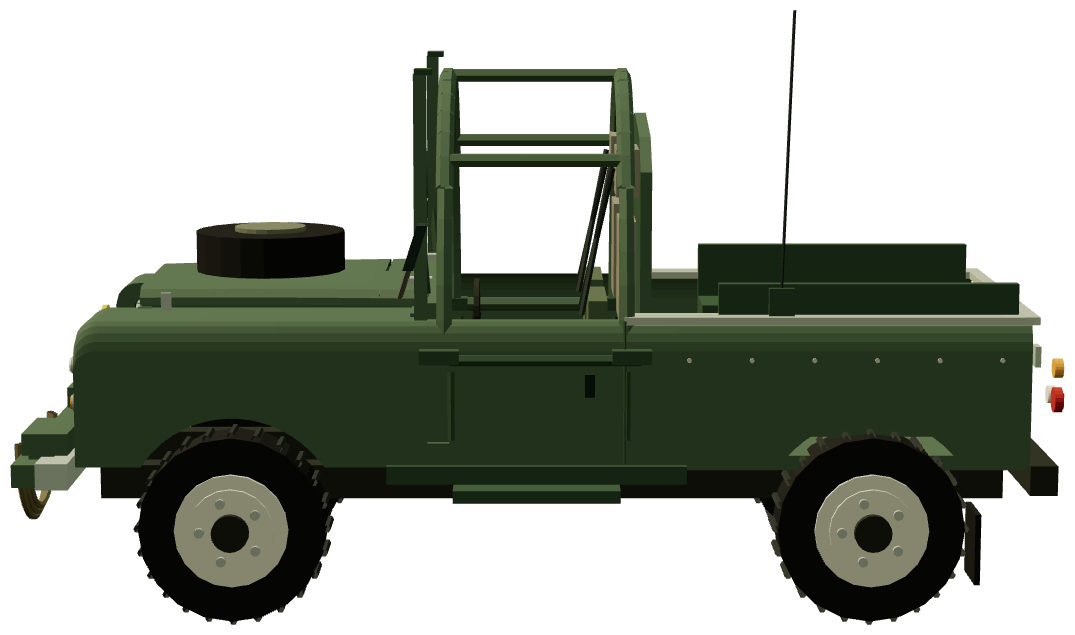

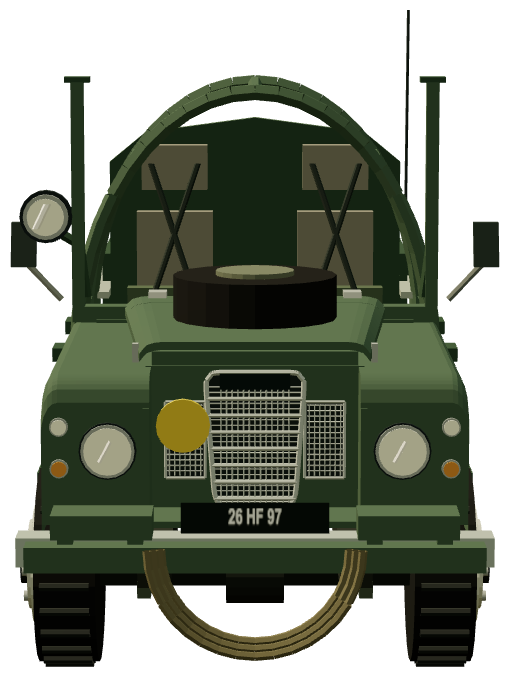

British forces had experimented with mine protection for Land Rovers since the counter-insurgency campaigns in Aden and the peacekeeping commitment in Cyprus, where patrol vehicles faced buried anti-personnel mines. The resulting conversion kept the standard Series III 109 running gear but added deflective armour plate under the chassis, protective plating around the fuel tanks beneath the front seats, deflection plates along the sills and dashboard top, vertical armour behind the seats, and prominent hooped roll-over bars above an open body, so that a mine blast would be shed outwards and the crew retained in a survivable space.
The type is best known from Operation Agila, the Commonwealth Monitoring Force deployment that supervised the Lancaster House ceasefire in Rhodesia and the elections that created Zimbabwe, between December 1979 and March 1980. Britain provided around 80 vehicles for the roughly 1,500-strong force drawn from the United Kingdom, Australia, New Zealand, Kenya and Fiji, and the mine-protected Land Rovers were marked with a large white cross to signal the force's impartiality to all factions during the ceasefire and election period.
Rhodesian engineers, who had far harder experience of anti-tank mines and had evolved their own purpose-built monocoque designs - the Rhino and Kudu conversions and the extraordinary Pookie detector vehicle - regarded the British Aden/Cyprus pattern as inadequate against the heavier mines common in the bush war. In the event the monitoring force's deployment passed without the vehicles being put to that test.
Surviving examples are rare. The vehicle referenced by this record was advertised on Milweb on behalf of the family of the late collector Gordon Beale, described as extensively restored with excellent mechanicals and a full in-service history, its first service having been the peacekeeping duties around Zimbabwe's 1980 elections.
Research status: draft — identification, dates or figures could not all be pinned down; the summary says what is unresolved.
