The Enhanced WMIK of 2006: the Wolf-based weapons platform given uprated suspension for more payload, the MAPIK modular armour kit against IEDs — wheel-arch and belly plates — alloy wheels designed to fragment rather than fly in a blast, a fixed Bowman fit of two VHF and one HF radio, and the perforated recovery tracks and extra stowage of a vehicle fighting in Afghanistan.
BASE VEHICLEDefender 110CONVERTERRicardo plcIN SERVICE2006–08OPERATED INUnited KingdomPRODUCTIONUnknownLAYOUT4 wheels · 110″
The record
The original WMIK of 1998 was a reconnaissance vehicle: a Wolf TUM HS with a roll-cage weapons ring, a three-man crew and no protection at all beyond speed and the ability to shoot back. By 2006 the British Army was fighting in Helmand, where the main threat was the improvised bomb under the road, and the Enhanced WMIK was the answer that could be delivered quickly on the existing fleet.
The E-WMIK's suspension was upgraded to carry more weight, and the weight it carried was armour: the Modular Armour Protection Installation Kit, MAPIK, adding wheel-arch and under-belly protection against IEDs. The wheels became alloys engineered to fragment under blast rather than be launched intact as projectiles into the crew. Communications went from carried sets to a fixed Bowman installation of two VHF and one HF radios. Mechanically it remained the Wolf: the 300 Tdi and R380 gearbox in standard configuration, with the 24-volt electrical system and a lowered roll cage so the vehicle would still fit inside a Chinook.
The E-WMIK's sequel arrived in 2008 as the Re-lifed WMIK, which moved the blast protection into an armoured V-hull; see the separate R-WMIK record. Production quantities for the enhancement programme are not published in the sources consulted.
Engineering Special Vehicles, with Land Rover (WMIK design); E-WMIK upgrade programme
MANUFACTUREDE-WMIK from 2006; succeeded by the R-WMIK from 2008
ENGINE2.5 L (2,495 cc) 300 Tdi intercooled turbodiesel inline-four, c. 111 bhp, R380 five-speed gearbox
PRODUCTION RUNUnknown — upgrade numbers not published
COUNTRY OF ORIGINUnited Kingdom
OPERATED INUnited Kingdom
STATUSwithdrawn
RECORD KINDNamed model
MODEL LINEDefender
WHEELS4
NOMINAL WHEELBASE110″
CATEGORYMilitary · UK
Catalogue fields describe the vehicle's structure and body as this registry records it. They are not certified factory measurements, and no performance figures are published here.
Renders & references

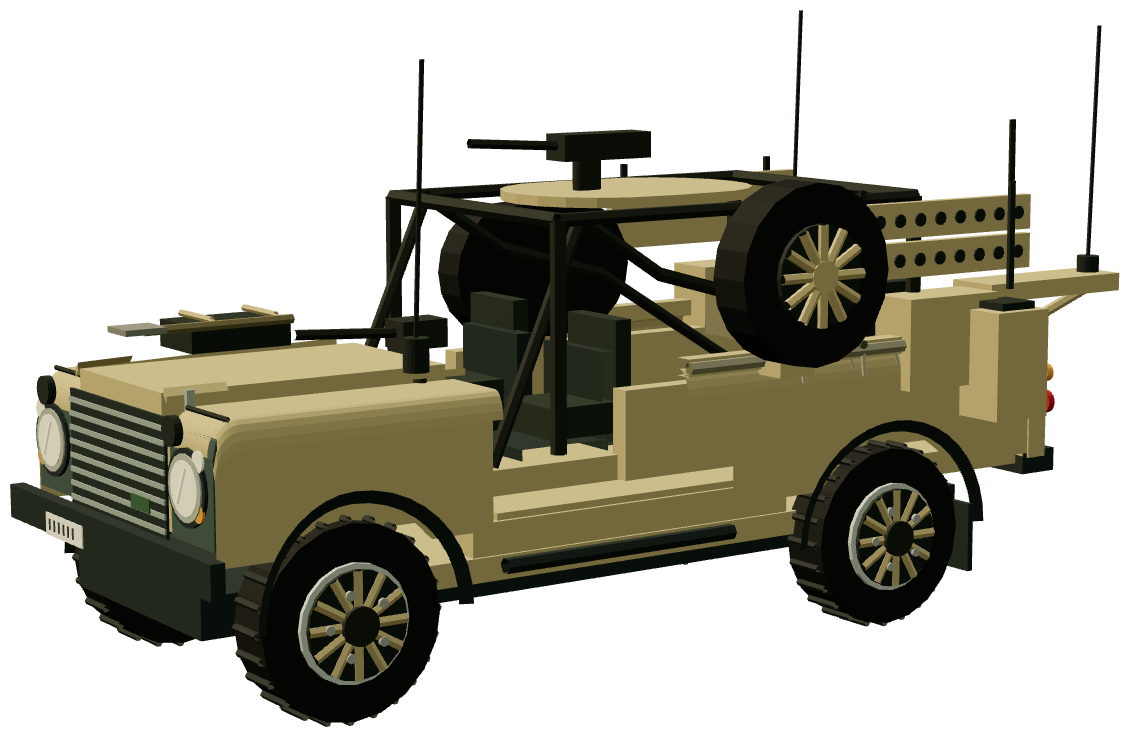

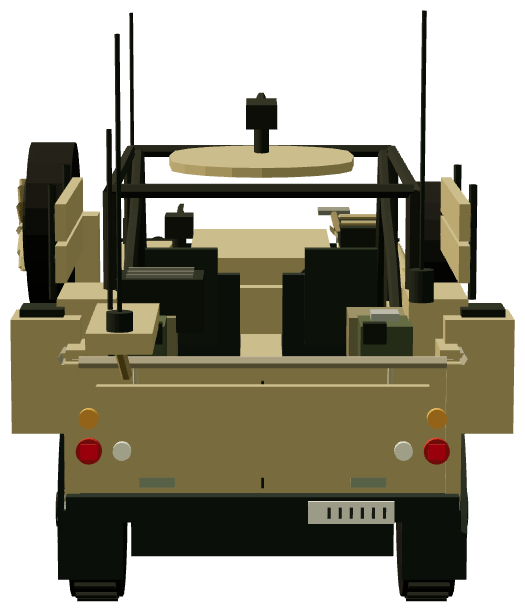

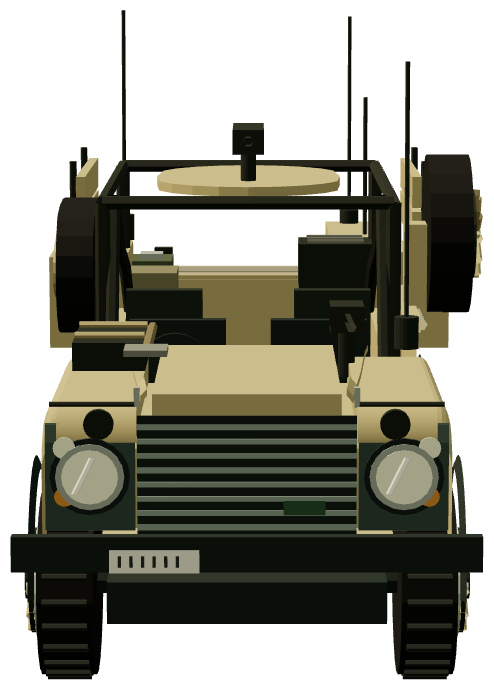

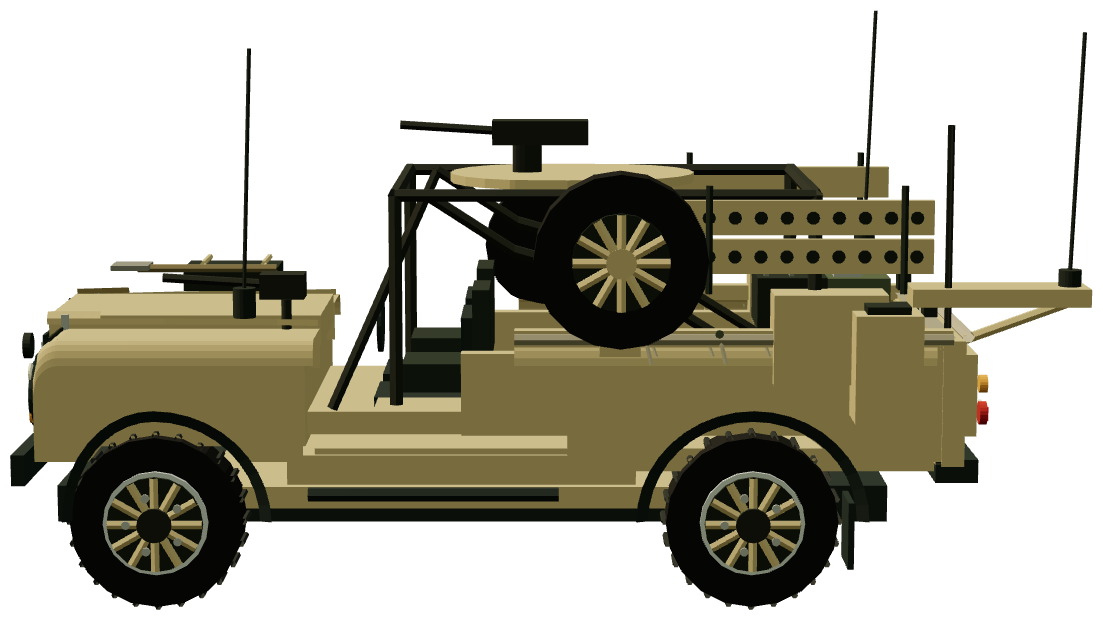

Front three-quarterRegistry renderThree-quarterRegistry renderSideRegistry renderRearRegistry renderFrontRegistry renderEnhanced WMIK equipment and livery reference.EMLRA ↗
