DIFFLOCKEDTHE REGISTRY BASE MODEL · 1956–58
BASE MODELUnited Kingdom

Series I 109″.

The 109-inch Land Rover was the long-wheelbase load-carrier of the final Series I generation, built by the Rover Company at Solihull from mid-1956 to 1958 as a pickup, hard top and soft top; the five-door station wagon continued on the older 107-inch chassis alongside it. The two-inch stretch over the 107-inch pickup chassis made room for Rover's first diesel engine, offered alongside the 2.0-litre petrol from 1957.

Build one in the CreatorSources & evidence
Series I 109″ — front three-quarter render
MODEL LINESeries IBUILT BYRover Company (Solihull)PRODUCED1956–58PRODUCTION~211,500 Series I of all wheelbases, 1948-58LAYOUT4 wheels · 109″

The record

The Land Rover was conceived in 1947 by Rover's chief designer Maurice Wilks as a stop-gap to keep the Rover Company's Solihull works busy while post-war steel rationing throttled car production. Inspired by a war-surplus Jeep on his Anglesey farm, Wilks laid out a light four-wheel-drive workhorse whose body panels were formed from Birmabright aluminium alloy - plentiful when steel was not - and whose first colour famously came from surplus aircraft-cockpit green paint. Launched at the Amsterdam Motor Show on 30 April 1948 on an 80-inch wheelbase with a 1.6-litre petrol engine and priced at £450, it was expected to sell perhaps 5,000 a year; roughly 8,000 were sold in the first full year and the 'stop-gap' rapidly outsold Rover's cars.

The formula was steadily developed. A larger 1,997 cc 2.0-litre petrol engine arrived in 1952, and in 1954 the 80-inch chassis gave way to an 86-inch model while a new 107-inch pickup added a genuine load-carrier to the range for the first time. Station wagons ran alongside the utility models: the coachbuilt Tickford wagon of 1949 sold only about 700 copies, but the factory-bodied seven-seater on the short chassis and, from September 1955, the five-door ten-seat wagon on the 107-inch chassis established the layout the marque would carry for decades.

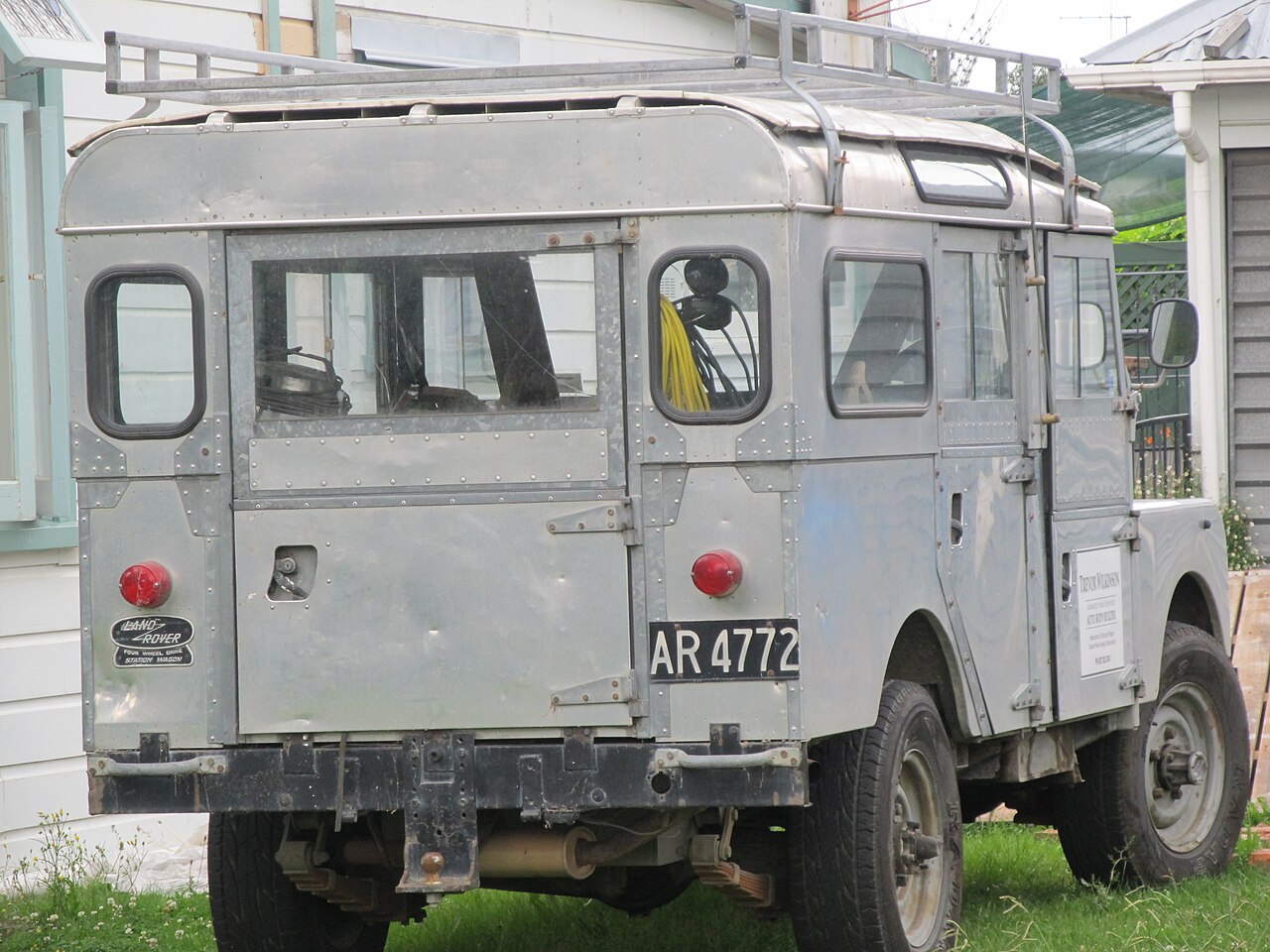

In mid-1956 both wheelbases were stretched two inches, to 88 and 109 inches, creating the definitive dimensions Land Rover would keep for a quarter of a century. The stretch was made ahead of a new engine: extra length in the front chassis made room for Rover's first diesel, a 2,052 cc overhead-valve four producing around 52 bhp, introduced as an option in 1957. The 109-inch was sold as a pickup, hard top and soft top load-carrier, while the five-door station wagon stayed on the old 107-inch chassis - the only Series I never offered with the diesel - until the end of production; a 109-inch wagon had to wait for the Series II.

Civilian vehicles of the late Series I era were overwhelmingly painted in Rover's bronze greens, with Deep Bronze Green regarded as the standard finish; period paint lists and Land Rover Classic's later 'Reborn' restorations also document Light (Pastel) Green, RAF Blue and Dove Grey, the last seen mainly on export and station wagon vehicles. Military, fleet and fire-service orders could specify their own schemes, and long-wheelbase Series I fire engines, ambulances and expedition vehicles survive in numbers.

In April 1958 Rover announced the Series II, retrospectively naming its predecessor the Series I. Around 211,000 Series I Land Rovers of all wheelbases had been built in the decade since 1948 - a total often rounded to 'over 200,000' - and the model's reputation for indestructibility means an unusually high proportion survive, sustained by a huge club, parts and restoration scene. The very first pre-production car, HUE 166, is preserved, and in 2016 Land Rover Classic began buying back and restoring Series I vehicles under its 'Reborn' programme, finished in the five period colours of the original.

Specification

MANUFACTURERRover Company (Solihull)
MANUFACTURED1956–1958 (109″ wheelbase; Series I production ran 1948–1958)
ENGINE2.0 L (1,997 cc) petrol inline-four; 2.0 L (2,052 cc) diesel inline-four from 1957
PRODUCTION RUN~211,500 Series I of all wheelbases, 1948-58 (no separate 109-inch figure published)
COUNTRY OF ORIGINUnited Kingdom
STATUSout of production since 1958; large survivor, club and restoration community
RECORD KINDBase model
MODEL LINESeries I
FAMILYLand Rover Series
SERIES1
WHEELS4
NOMINAL WHEELBASE109″
BODY STYLENo roof
VARIANTS7

Catalogue fields describe the vehicle's structure and body as this registry records it. They are not certified factory measurements, and no performance figures are published here.

Body style

Factory colours · pick one to repaint the renders

Codes on hover. Hex values are representative approximations of period paint unless a source states a measured value.

Sources

  1. 1Land Rover series (Series I: 1948 launch, 1954 86/107, mid-1956 stretch to 88/109, 1957 diesel, Rover Company Solihull; September 1955 five-door 107 station wagon) ↗Wikipedia · accessed 2026-09-09SOURCE
  2. 2Land Rover Series 1 models and specs (88/109: 1956-1958; 1,997 cc petrol; 2,052 cc diesel 1957-1961) ↗LandyOnline · accessed 2026-09-09SOURCE
  3. 3Land Rover Series I (1948-1958): Engine, Chassis and Restoration Guide ('In 1956, both wheelbase variants were extended by two inches'; 1957 2,052 cc diesel option) ↗RoverParts.eu · accessed 2026-09-09SOURCE
  4. 4The Land Rover History: Series I (88/109 launched 1956; diesel launched 1957; 107 wagon continued to the end of Series I) ↗Winwaed · accessed 2026-09-09SOURCE
  5. 5Land-Rover Series I (1948-1958) - wheelbases grew to 88in and 109in in 1956 to make way for the new 2-litre diesel; 107 station wagon not available with diesel ↗allisons.org · accessed 2026-09-09SOURCE
  6. 6How many Land Rover Series 1 Mark III (86in and 107in) were produced? (107 pickup 20,348 and 107 Station Wagon 7,007; 107 wagon stayed in production alongside the 88/109) ↗John Kong · accessed 2026-09-09SOURCE
  7. 7A Quick History of the Land Rover Series 1 (Amsterdam debut April 1948; ~8,000 first-year sales; cockpit-green surplus paint; 1957 2,052 cc diesel) ↗Silodrome · accessed 2026-09-09SOURCE
  8. 8History of the Defender - One Life (30 April 1948 Amsterdam launch, 80in wheelbase, £450; Series II 1958) ↗Land Rover UK · accessed 2026-09-09SOURCE
  9. 91951 Land Rover Series I profile (Series I production 211,467 including prototypes) ↗Sports Car Market · accessed 2026-09-09SOURCE
  10. 10Land Rover FAQ: Series paint codes (Herberts Series I colours: Bronze Green, Ivory, RAF Blue, Dove Grey) ↗Land Rover FAQ (lrfaq.org) · accessed 2026-09-09SOURCE
  11. 11Concours of Elegance hosts UK debut of Series I Reborn (five period finishes: Light Green, Bronze Green, RAF Blue, Dove Grey, Poppy Red) ↗Concours of Elegance · accessed 2026-09-09SOURCE
  12. 12Land Rover Series 1 in Deep Bronze Green (1956) - Deep Bronze Green as the standard late Series I colour ↗John Brown 4x4 · accessed 2026-09-09SOURCE
  13. 13
    Series I front body review — series1-bronze and Series I configurations · HERITAGE-FLEET-REFERENCES.md

    User photographs `s1.jpeg`, `imagesj.jpeg`, `25109914-1-55.jpg` and `s1_.jpeg` show the early Series I front: a narrow central wire-mesh radiator grille with inboard headlamps, broad flat-sided wings rolling over a long front radius, one small white sidelight per wing, and a bonnet tapering forward with rounded long side pressings. The shared Series I builder uses these proportions for both wheelbases. This is a visual reference interpretation, not a measured CAD scan.

    NOTES
  14. 14
    Series III front review — standard Series III configurations · HERITAGE-FLEET-REFERENCES.md

    User references `hfhimages.jpeg`, `imagesl.jpeg`, and `IMG_1992-jpg.webp` show the tall tapered central plastic grille with shorter side vents, recessed radiator panel, broad wings with rounded leading edges, inboard wing headlamps and white sidelights above amber indicators. The standard Series III bonnet narrows toward the grille. Stage 1 V8 and Santana retain their distinct flush-front grilles. Meteor Works uses a **Series III front**, not the Series IIA front of the army and RAF Marshall ambulances. Its internal `marshal-series3` shell shares the Marshall coachwork but inherits Series III wings, bonnet, grille, headlamps and outer lamps. Meteor adds only its weathered livery, guard and emergency equipment around that standard front, avoiding duplicated headlamp pods. ### Coachwork front-panel corrections - The Shop Truck and the Marshall family (including Meteor Works and RAF rescue) retain clipped curved side skins through the front wings and doors at their custom body joins. - Queen Elizabeth II’s Series IIA station wagon uses the Series III-style wing-mounted headlights, bonnet and broad black grille shown in the supplied reference. No numberplate is modelled. Reference: `

    NOTES

Registry record updated 2026-09-09T05:56:42.804Z · status: researched
