Land Rover's 1989 family 4x4: 'Project Jay' put a stepped-roof seven-seat body and Conran-influenced Sonar Blue interior on Range Rover underpinnings, creating the mid-market Discovery that transformed the company's fortunes.
MODEL LINEDiscovery 1BUILT BYLand Rover (Rover Group; owned by British Aerospace 1988-1994, then BMW)PRODUCED1989–98PRODUCTIONNo official Series I total publishedLAYOUT4 wheels
The record
By the mid-1980s Land Rover was being squeezed between its utility models and the increasingly expensive Range Rover while Japanese 4x4s claimed the family market. The answer, developed from 1986 under the code-name 'Project Jay', reused the Range Rover's 100-inch chassis, permanent four-wheel drive and coil suspension beneath an all-new body whose stepped 'alpine' roofline, asymmetric rear and optional seven seats defined the Discovery. The interior broke new ground: styled with input from the Conran Group in pale 'Sonar Blue' with golf-ball textures, map bins and grab handles, it won a British Design Award.
The Discovery was unveiled at the Frankfurt Motor Show on 12 September 1989, with UK sales starting that November at just under £16,000 for the three-door - initially the only body, with the five-door following in 1990. Launch engines were the 3.5-litre Rover V8 and, crucially, the brand-new 200Tdi direct-injection turbodiesel, whose economy and pace made diesel the defining Discovery choice in Europe. Press cars registered in the G-WAC series, in launch colours such as Zanzibar Silver, Marseilles Blue and Foxfire Red, are now prized by preservationists.
The range matured steadily: the 2.0-litre Mpi petrol arrived for tax-friendly markets, the V8 grew to 3.9 litres with fuel injection, and a major 1994 facelift brought the 300Tdi diesel, a stronger R380 gearbox, revised lights and airbags, taking the model to the 1998 handover to the heavily re-engineered Discovery Series II. North American sales began in 1994, and Discoverys carried Camel Trophy colours through the event's classic years.
The Discovery became Land Rover's volume seller and arguably saved the company, though no official Series I-only production total appears to have been published; the Discovery family as a whole passed one million vehicles in 2012.
Specification
MANUFACTURERLand Rover (Rover Group; owned by British Aerospace 1988-1994, then BMW)
MANUFACTURED1989–1998
ENGINE2.5 L 200Tdi/300Tdi turbodiesel; 3.5/3.9 L Rover V8 and 2.0 L Mpi petrols
PRODUCTION RUNNo official Series I total published; the Discovery family passed 1,000,000 vehicles in 2012
COUNTRY OF ORIGINUnited Kingdom
STATUSout of production
RECORD KINDBase model
MODEL LINEDiscovery 1
FAMILYDiscovery 1
WHEELS4
BODY STYLEDiscovery 1
VARIANTS1
Catalogue fields describe the vehicle's structure and body as this registry records it. They are not certified factory measurements, and no performance figures are published here.
Codes on hover. Hex values are representative approximations of period paint unless a source states a measured value.
Renders & references

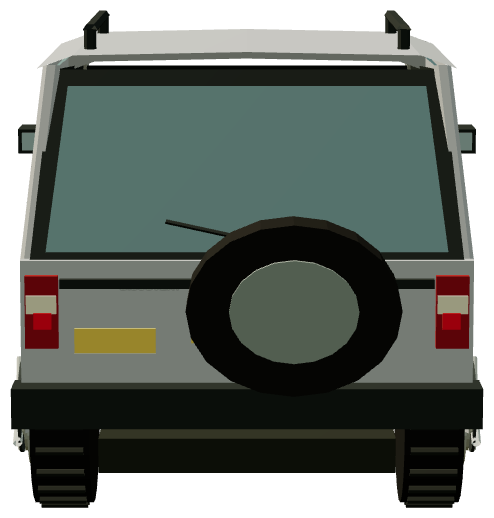

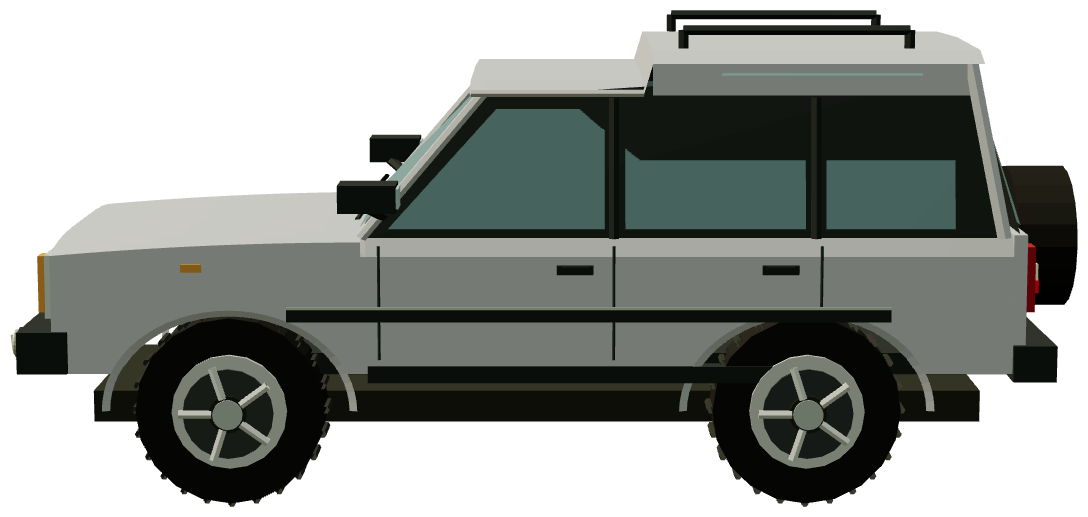

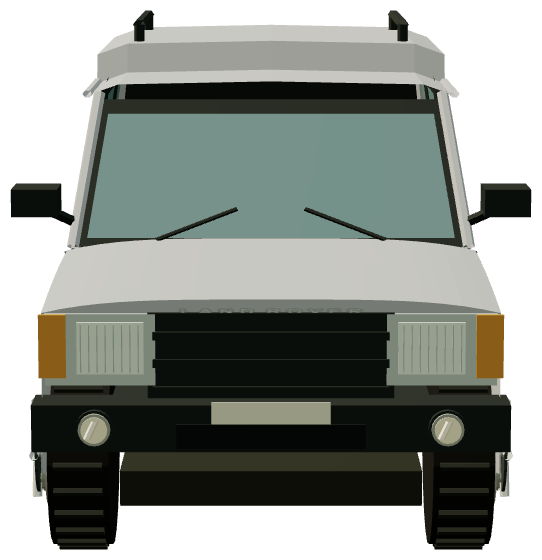

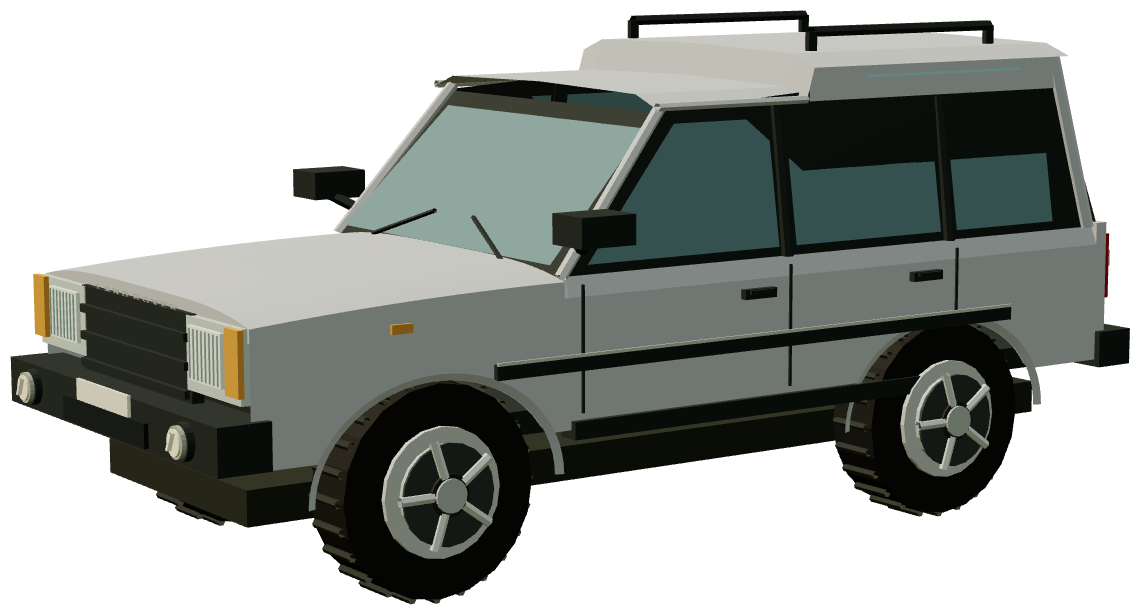

Front three-quarterRegistry renderThree-quarterRegistry renderSideRegistry renderRearRegistry renderFrontRegistry renderEarly-production 1989 Discovery 3.5 V8 three-door, launch press car G534 WAC in Zanzibar SilverVauxford · CC BY-SA 4.0 ↗1989 Discovery 3.5 V8 launch car G478 WAC on the Project Jay Preservation Group stand, NEC Restoration Show 2022kieranwhite599 · CC BY 2.0 ↗
6Series I front body review — series1-bronze and Series I configurations · HERITAGE-FLEET-REFERENCES.md
User photographs `s1.jpeg`, `imagesj.jpeg`, `25109914-1-55.jpg` and `s1_.jpeg`
show the early Series I front: a narrow central wire-mesh radiator grille with
inboard headlamps, broad flat-sided wings rolling over a long front radius, one
small white sidelight per wing, and a bonnet tapering forward with rounded long
side pressings. The shared Series I builder uses these proportions for both
wheelbases. This is a visual reference interpretation, not a measured CAD scan.
NOTES
7Series III front review — standard Series III configurations · HERITAGE-FLEET-REFERENCES.md
User references `hfhimages.jpeg`, `imagesl.jpeg`, and `IMG_1992-jpg.webp` show the
tall tapered central plastic grille with shorter side vents, recessed radiator
panel, broad wings with rounded leading edges, inboard wing headlamps and white
sidelights above amber indicators. The standard Series III bonnet narrows toward
the grille. Stage 1 V8 and Santana retain their distinct flush-front grilles.
Meteor Works uses a **Series III front**, not the Series IIA front of the army
and RAF Marshall ambulances. Its internal `marshal-series3` shell shares the
Marshall coachwork but inherits Series III wings, bonnet, grille, headlamps and
outer lamps. Meteor adds only its weathered livery, guard and emergency equipment
around that standard front, avoiding duplicated headlamp pods.
### Coachwork front-panel corrections
- The Shop Truck and the Marshall family (including Meteor Works and RAF rescue) retain clipped curved side skins through the front wings and doors at their custom body joins.
- Queen Elizabeth II’s Series IIA station wagon uses the Series III-style wing-mounted headlights, bonnet and broad black grille shown in the supplied reference. No numberplate is modelled. Reference: `
