Rapier 101FC.

The Australian Army's Rapier tractor: one of 58 right-hand-drive 101 Forward Controls built at Solihull in 1976–78 for the British Aircraft Corporation and delivered with the Rapier surface-to-air missile system, towing the launcher or its storage trailer and carrying missile racks in the rear.

Drive it in the gameSources & evidence

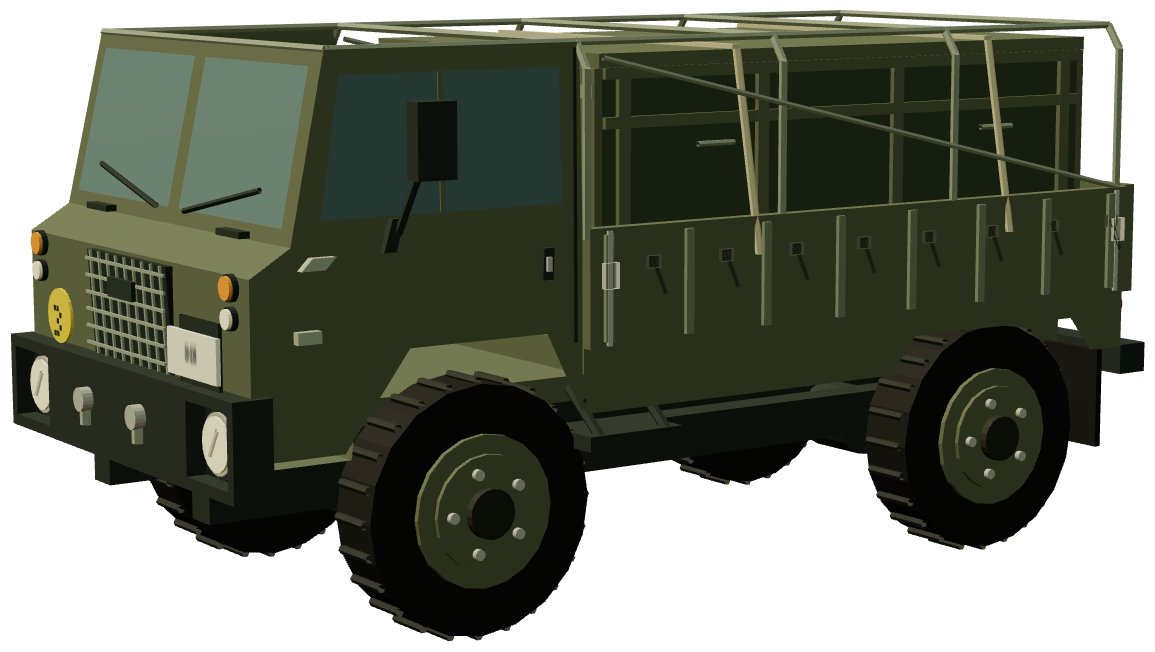

Rapier 101FC — front three-quarter render
BUILT BYLand Rover (British Leyland), SolihullIN SERVICE1976–78OPERATED INAustraliaPRODUCTION58 built for AustraliaLAYOUT4 wheels · 101″

The record

Australia bought the Rapier low-level air defence system from the British Aircraft Corporation in the mid-1970s, and the vehicle that came with it was the Land Rover 101 Forward Control — the V8-engined, one-tonne cab-over gun tractor Land Rover had developed for the British Army. Fifty-eight right-hand-drive 101s were built by Land Rover for BAC between 1976 and 1978 as part of that package, a small slice of the 2,660 or so 101s built in total. A handful of others have been privately imported into Australia since.

16 Air Defence Regiment was the primary user, towing Rapier fire units and their storage trailers, with missile racks fitted in the back of the vehicle; the RAEME Training Centre and the School of Artillery also ran them. At any one time 16 AD Regt had at least 28 vehicles on strength, but the individual vehicles were rotated continuously through Moorebank workshops against a pool, so the fleet numbers on a unit's books were not tied to particular chassis.

Mechanically these were standard 101s: 3.5-litre Rover V8, four-speed LT95 gearbox with permanent four-wheel drive, 101-inch wheelbase, 9.00×16 tyres, and front and rear power take-off winches. They were finished in the same olive drab as the Australian Army's Series III fleet of the period rather than the British bronze green.

The 101s left Australian Army service around 1990 and many went to auction — one sale at Holsworthy in the early 1990s released about fifteen of them, by then stripped of their Rapier equipment and presented as standard general-service vehicles, at prices in the region of $9,000 to $13,000. The type is well represented among Australian military vehicle collectors today.

Specification

MANUFACTURERLand Rover (British Leyland), Solihull
MANUFACTURED58 RHD vehicles built 1976–1978 for the British Aircraft Corporation; Australian service to about 1990
ENGINE3.5 L Rover V8 petrol, four-speed LT95 gearbox, permanent four-wheel drive
PRODUCTION RUN58 built for Australia (of about 2,660 101s in total)
COUNTRY OF ORIGINUnited Kingdom
OPERATED INAustralia
STATUSretired from Australian service around 1990; many preserved
ROLERapier fire unit tractor and missile carrier
PRIMARY USER16 Air Defence Regiment, with the RAEME Training Centre and School of Artillery
FLEET ON STRENGTHat least 28 operational vehicles at any one time, rotated against a pool through Moorebank workshops
EQUIPMENTRapier storage racks in the rear body; front and rear power take-off winches
WHEELBASE101 inches, on 9.00×16 tyres
RECORD KINDNamed model
FAMILY101-forward-control
WHEELS4
NOMINAL WHEELBASE101″
CATEGORYMilitary · Australia

Catalogue fields describe the vehicle's structure and body as this registry records it. They are not certified factory measurements, and no performance figures are published here.

Variants & colours

Factory colours

  • Australian Olive Drab (lustreless)

Codes on hover. Hex values are representative approximations of period paint unless a source states a measured value.
