101 Forward Control Cargo.

The General Service cargo form of the Land Rover 101 Forward Control, the V8-powered 'One Tonne' cab-over truck built for the British military 1972-1978. All 2,669 left Solihull as soft-top GS gun tractors, designed to haul the L118 Light Gun, a ton of ammunition and its crew.

Drive it in the gameSources & evidence

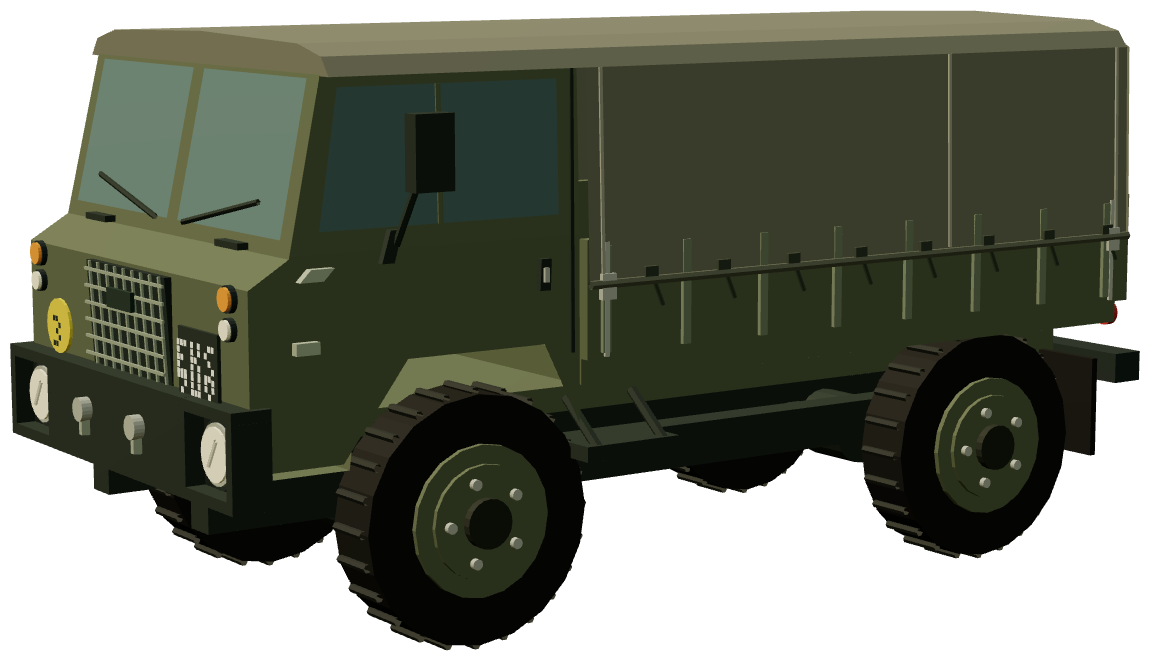

101 Forward Control Cargo — front three-quarter render
BUILT BYLand Rover (British Leyland), SolihullIN SERVICE1972–78OPERATED INUnited KingdomPRODUCTION2,669 vehiclesLAYOUT4 wheels · 101″

The record

The 101 Forward Control was born of a late-1960s General Staff requirement for a compact one-tonne air-portable truck to tow the new 105 mm L118 Light Gun with a ton of ammunition and equipment. Development began in 1967, and the result was unlike any other Land Rover: a 101-inch wheelbase, a flat-fronted cab perched over the front axle, and the 3.5-litre Rover V8 mounted beneath and behind the crew driving through permanent four-wheel drive. Design provision was made for a powered-axle trailer driven from the truck's own transmission - an ingenious way to make a 4x4 into a six-wheel drive train - though the powered trailer saw only limited use. Production ran at Solihull between 1972 and 1978, and every one of the 2,669 vehicles built left the factory in the same basic form documented here: the soft-top General Service gun tractor, with a canvas tilt over a flat-sided cargo body, in 12-volt GS or 24-volt FFR (fitted for radio) electrical fit.

In British Army and RAF service the GS cargo 101 towed light guns and Rapier missile systems, hauled signals equipment and stores, and won a following for its extraordinary cross-country ability - the V8's torque and the short overhangs let a laden 101 go where nothing else wheeled would. Many were later refitted with specialist bodywork: Marshall of Cambridge built four-stretcher ambulance bodies (recorded separately in this registry), around 21 received the electronic-warfare 'Vampire' body, and others became radio trucks or winch-equipped Rapier tractors. Service vehicles wore the British military's gloss Deep Bronze Green and later the matt infrared-reflective NATO green.

The fleet soldiered on for two decades until the MoD decommissioned the last 101s in the late 1990s in favour of Defenders and Pinzgauers. Sold into preservation in large numbers, the 101 GS has become a cult vehicle - camper conversions, overland trucks and concours-restored gun tractors alike - sustained by an active owners' club and the type's unmistakable go-anywhere silhouette.

Specification

MANUFACTURERLand Rover (British Leyland), Solihull
MANUFACTURED1972-1978 (development from 1967; in British service until the late 1990s)
ENGINE3.5 L Rover V8 petrol
PRODUCTION RUN2,669 vehicles (all 101 Forward Controls; every one built as a GS gun tractor, many later re-bodied)
COUNTRY OF ORIGINUnited Kingdom
OPERATED INUnited Kingdom
STATUSout of production; retired from British service in the late 1990s; strong preservation and enthusiast scene
RECORD KINDNamed model
FAMILY101-forward-control
WHEELS4
NOMINAL WHEELBASE101″
CATEGORYMilitary · UK

Catalogue fields describe the vehicle's structure and body as this registry records it. They are not certified factory measurements, and no performance figures are published here.

Variants & colours

Base model variants

Factory colours

  • Deep Bronze Green
  • NATO Green (IRR)

Codes on hover. Hex values are representative approximations of period paint unless a source states a measured value.
